Ang AS1631 ay isang resonant switching power controller batay sa isang half-bridge LLC resonant converter. Pinagsasama ng chip ang high-voltage start, AC power failure detection at X capacitor discharge functions upang matugunan ang mga kinakailangan ng mabilis na pagsisimula at ultra-low standby.

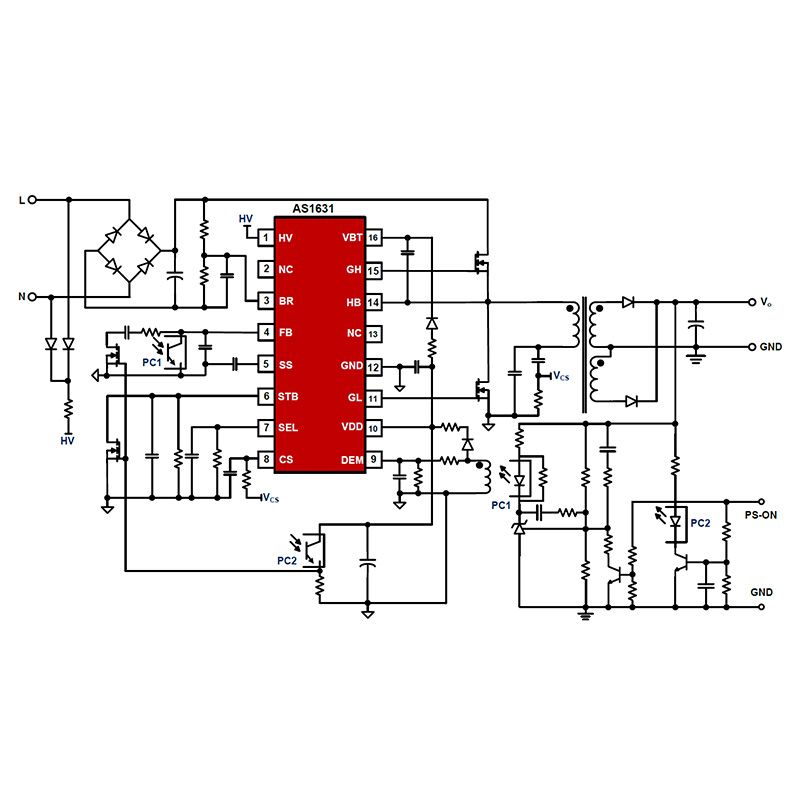

Half bridge Resonant LLC control chip
Ang AS1631 ay isang resonant switching power controller batay sa isang half-bridge LLC resonant converter. Pinagsasama ng chip ang high-voltage start, AC power failure detection at X capacitor discharge functions upang matugunan ang mga kinakailangan ng mabilis na pagsisimula at ultra-low standby. Ang AS1631 ay nagsasama ng isang half-bridge drive upang direktang maglabas ng 50% duty cycle na komplementaryong drive. Ang chip ay may built-in na high-precision na VCO oscillator na may maximum na operating frequency na 350kHz. Isinasama ng chip ang function ng adaptive dead zone control upang matiyak ang zero voltage on (ZVS) ng power switch tube, na nagpapabuti sa kahusayan ng system. Kasabay nito, ang capacitive zone protection function ay isinama upang maiwasan ang bridge arm nang diretso at hard switch, na nagpapabuti sa pagiging maaasahan ng system.
Bilang karagdagan, ang chip ay maaaring kontrolin sa mababang standby mode sa pamamagitan ng isang panlabas na signal, na binabawasan ang standby na pagkawala ng system. Ang AS1631 ay ganap na isinama sa mga feature ng proteksyon, kabilang ang: VDD overvoltage/undervoltage protection (VDD OVP/UVLO), VBT undervoltage protection (VBT UVP), AC overvoltage at input undervoltage protection (LOVP & HV/BR BOP), overload protection (OLP). ), at resonator overcurrent protection (CBC OCP / SOCP), Output overcurrent protection (OCP), capacitance zone protection, SEL pin short-circuit protection, overheat protection (OTP).
• High precision VCO control
• Sinusuportahan ang maximum na dalas ng 350kHz
• Pinagsamang 650V half-bridge drive
• Pinagsamang high-voltage start function
• Adaptive dead zone time control
• Ang soft boot function ay maaaring i-configure
• Pinagsamang AC power failure detection at X capacitor discharge
• Suportahan ang mga application ng disenyo na walang PFC
• Maaaring i-configure ang normal na working mode o low standby mode
• Uri ng Encapsulation SOP-16
• Pinagsamang mga feature ng proteksyon:
• VDD overvoltage/undervoltage protection (VDD OVP/UVLO)
• VBT Undervoltage Protection (VBT UVP)
• HV pin input Undervoltage protection (HV BOP)
• BR pin configurable input Undervoltage protection (BR BOP)
• AC Overvoltage Protection (LOVP)
• Overload Protection (OLP)
• Cavity current Cyclic overcurrent protection (CBC OCP)
• Output Overcurrent Protection (OCP)
• Proteksyon ng capacitive area
• SEL pin open short circuit na proteksyon
• Proteksyon sa sobrang init (OTP)
• Power supply ng TV board card
• Mga Aplikasyon ng LED
• Adapter power supply
• Bukas, server at iba pang switching power supply
